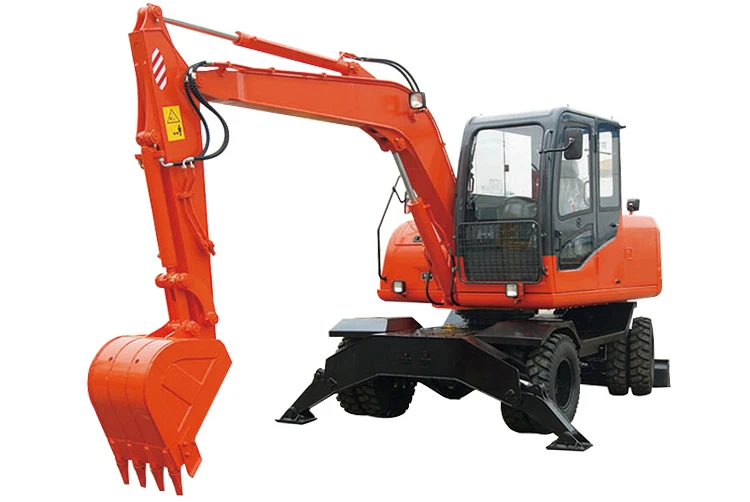

Construction Machinery 6 Ton Wheel Excavator with 0.3 Cbm Bucket
The wheel excavators can efficiently perform various excavation operations such as municipal construction, road construction, river dredging, and so on. The machine matches properly with the power and is stable in performance, designed compactly and economical. 1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability. 2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses. 3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life. 4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity. 5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment. 6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.
AWS870-9M wheel hydraulic excavator parameters
|
Overall weight
|
kg
|
6600
|
||||
|
Volume of bucket
|
m3
|
0.28
|
||||
|
Dimensions
|
Counterweight ground clearance
|
mm
|
1023
|
|||
|
Tail radius of gyration
|
mm
|
1833
|
||||
|
Tail length
|
mm
|
1833
|
||||
|
Upper width
|
mm
|
2000
|
||||
|
Total height (top of cab)
|
mm
|
2827
|
||||
|
Min.ground clearance
|
mm
|
217
|
||||
|
Tire distance
|
mm
|
1670
|
||||
|
Wheelbase
|
mm
|
2400
|
||||
|
Boom length
|
mm
|
3050
|
||||
|
Stick length
|
mm
|
1750
|
||||
|
Total length
|
mm
|
5796
|
||||
|
Total width
|
mm
|
2150
|
||||
|
Machine performance parameters
|
Engine
|
Model
|
/
|
A498BZG
|
||
|
Form
|
/
|
Water cooling/ supercharging
|
||||
|
Bore * Stroke
|
mm
|
￠95/105
|
||||
|
Piston displacement
|
L
|
2.977
|
||||
|
Rated power
|
kw/rpm
|
48/2300
|
||||
|
Max.Torque
|
N.m/rpm
|
245/1610
|
||||
|
Hydraulic system
|
Hydraulic pump model
|
Gear pump*2
|
SGP1A23F2H9
|
|||
|
Rated displacement
|
ml/r
|
23+23
|
||||
|
Pilot pump
|
Mpa
|
3
|
||||
|
Working pressure
|
MPa
|
20
|
||||
|
Limited Data
|
L/min
|
105.8
|
||||
|
Hydraulic tank
|
L
|
103
|
||||
|
Fuel tank capacity
|
L
|
125
|
||||
|
Working system
|
Swing speed
|
rpm
|
10
|
|||
|
Walking speed
|
km/h
|
0～30
|
||||
|
Bucket digging force
|
kN
|
35
|
||||
|
Stick digging force
|
kN
|
28
|
||||
|
Max.Traction
|
kN
|
39
|
||||
|
Gradeability
|
°
|
30
|
||||
|
Bulldozing plate (w * h)
|
mm
|
2024/440
|
||||
|
Parking brake
|
/
|
Air brake
|
||||
|
Driving system
|
/
|
Air brake
|
||||
|
The scope of work
|
Max. digging reach
|
mm
|
6074
|
|||
|
Max. digging depth
|
mm
|
3228
|
||||
|
Max. digging height
|
mm
|
6202
|
||||
|
Max. dumping reach
|
mm
|
4533
|
||||
|
Min. swing radius
|
mm
|
2361
|
||||
|

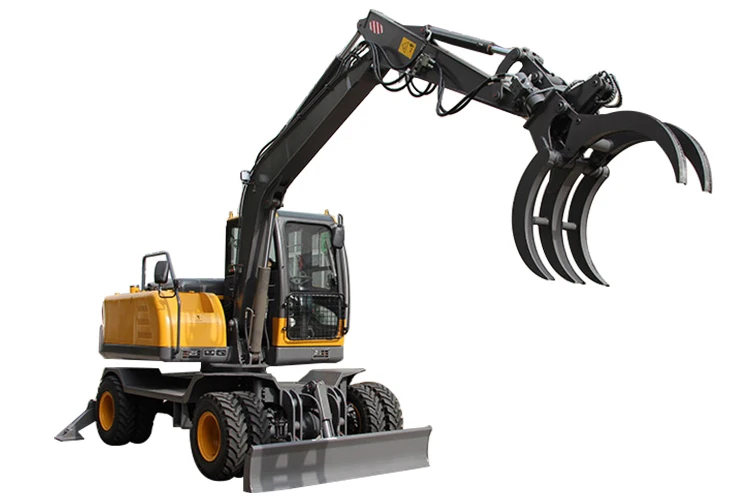

AWS895BLH-9M product parameters
|
||||||
|
Overall weight
|
kg
|
8000
|
||||
|
Volume of bucket
|
m3
|
0.32
|
||||
|
Dimensions
|
Total length
|
mm
|
6835
|
|||
|
Total width
|
mm
|
2152
|
||||
|
Total height (top of cab)
|
mm
|
2835
|
||||
|
Tail radius of gyration
|
mm
|
2135
|
||||
|
Wheelbase
|
mm
|
2636
|
||||
|
Min.Ground clearance
|
mm
|
318
|
||||
|
Performance parameter
|
Engine rated power
|
kw/rpm
|
55/2200
|
|||
|
Engine max.torque
|
N.m/rpm
|
280/1500
|
||||
|
Main pump type
|
Type
|
Piston pump * 2 + gear pump
|
||||
|
Rated displacement
|
ml/r
|
36*2+9+25
|
||||
|
Pilot pressure
|
Mpa
|
3.5
|
||||
|
Working pressure
|
MPa
|
22.5
|
||||
|
Limited Data
|
L/min
|
212
|
||||
|
Hydraulic oil tank capacity
|
L
|
155.22
|
||||
|
Fuel tank capacity
|
L
|
138.15
|
||||
|
Swing speed
|
rpm
|
11
|
||||
|
Max.speed
|
km/h
|
30
|
||||
|
Bucket digging force
|
kN
|
41.4
|
||||
|
Max.Traction
|
kN
|
52
|
||||
|
Gradeability
|
°
|
25°
|
||||
|
Bulldozing plate (w * h)
|
mm
|
2140/430
|
||||
|
The scope of work
|
Boom length
|
mm
|
3850
|
|||
|
Stick length
|
mm
|
2000
|
||||
|
Max.digging distance
|
mm
|
6769
|
||||
|
Max.digging depth
|
mm
|
4400
|
||||
|
Max.unloading height
|
mm
|
5307
|
||||
|
Min.radius of gyration
|
mm
|
2133
|
||||
|
Dumping height of wood grab
|
mm
|
5100
|
||||
|
Max.snatch distance of wood grab
|
mm
|
7000
|
||||
|
Max.grab weight of wood grab
|
kg
|
1000
|
||||
|
AWS890-9A wheel hydraulic excavator parameters
|
||||
|
Overall weight
|
kg
|
8000
|
||
|
Volume of bucket
|
m3
|
0.4
|
||
|
Power
|
KW/min
|
56/2200
|
||
|
Hydraulic system working pressure
|
Mpa
|
21
|
||
|
Rated flow
|
L/min
|
2*55
|
||
|
Swing speed
|
rpm
|
10
|
||
|
Trabel speed
|
km/h
|
5-30
|
||
|
Max.hauling force
|
kn
|
47
|
||
|
Max.torque
|
N.m/rpm
|
292/1600
|
||
|
Gradeability
|
°
|
25
|
||
|
Fuel tank
|
L
|
127
|
||
|
Hydraulic oil tank
|
L
|
118
|
||
|
Upper structure width
|
mm
|
2140
|
||
|
Cad width
|
mm
|
950
|
||
|
Machine height
|
mm
|
2775
|
||
|
Tran sportation length
|
mm
|
6450
|
||
|
Overall height
|
mm
|
1600
|
||
|
boom length
|
mm
|
3500
|
||
|
Arm length
|
mm
|
1800
|
||
|
Ground clear ance(bob-weight)
|
mm
|
1030
|
||
|
Tyre gouge
|
mm
|
Before:1650 Rear: 1610
|
||
|
Wheel shaft diameter
|
mm
|
2400
|
||
|
Bulldozer (wide)
|
mm
|
2140
|
||
|
Bulldozer (high)
|
mm
|
310
|
||
|
Min.ground clearance
|
mm
|
343
|
||
|
Max. digging reach
|
mm
|
6456
|
||
|
Max. digging depth
|
mm
|
3890
|
||
|
Max. digging height
|
mm
|
6637
|
||
|
Max. dumping reach
|
mm
|
4865
|
||
|
Min. swing radius
|
mm
|
2849
|
||
|
Rear-end seingradius
|
mm
|
1989
|
||
|
Max.hade digging depth
|
mm
|
6360
|
||
|
Min.turning radius
|
mm
|
7250
|
||
Product Details
Product Application
Jining Aowei Machine Co., Ltd.
Jining Aowei Machine Co., Ltd. is a modern enterprise which is specialized in producing all kinds of Mini excavators,Road rollers,Self Dumpers ,Skid steer loaders, wheel loaders, Tractors and Forklifts etc. Our products are exported to clients in such countries and regions as United States, Southeast Asia, Australia, Europe, Russia, the Middle East, Africa. We also welcome OEM and ODM orders. Our company locates in Jining city, Shandong province, which is the "Home of Confucius and Mencius, the State of Etiquette”,and also Jining is one of four Chinese construction machinery bases famous of Shantui and Komatsu brand. Our company offers bulk export processing trade products, and other services to meet customer's needs.We hope to cooperate with you mutual success and we can be your trustworthy friend in the future!
