It adopt the imported high-speed galvanometer scanning head,greatly reduced the time delay and improved the marking speed. The speed is 3-10 times of first generation YAG and second generation semiconductor marking machine.
Metal laser engraving machine portable 20w 30w 50w Mopa gold metal smart color fiber laser marking machine
Application

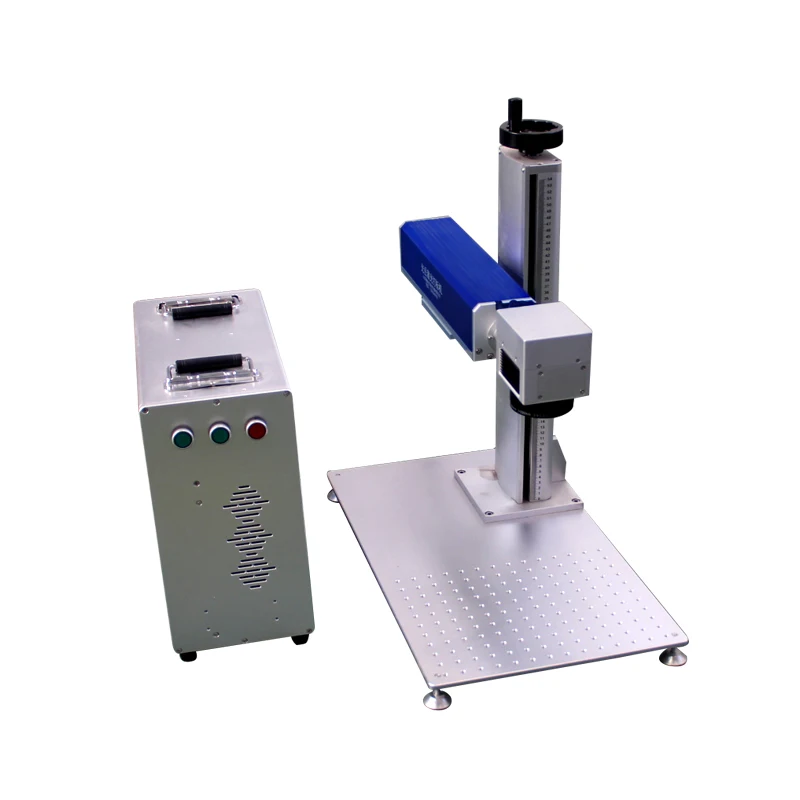

Metal laser engraving machine portable Fiber laser marking machine 20w 30w 50w
|
SPECIFICATIONS FOR Metal laser engraving machine portable Fiber laser marking machine 20w 30w 50w
|
||||||
|
Working size of Fiber marking machine
|
110x110mm--200*200mm
|
|||||
|
Fiber control system
|
Raycus
|
|||||
|
Laser Head
|
Sino-Galvo SG7110
|
|||||
|
Fiber power
|
20W(Optional 30W/50W)
|
|||||
|
cooling way
|
Air cooling
|
|||||
|
Worktable adjustment range
|
0-450mm
|
|||||
|
Computer operating system
|
WindowXP/Window7/W8/W10
|
|||||
|
Support graphical format
|
Support AI,PLT, DXF, BMP,JPG file, etc
|
|||||
|
Optical wavelength
|
1064nm
|
|||||
|
Marking speed
|
0-7000mm/s
|
|||||
|
Marking thickness
|
0-1mm
|
|||||
|
Minimum line width
|
0.015mm
|
|||||
|
Minimum character
|
0.01mm
|
|||||
|
Operating voltage
|
AC220V 10%/50Hz-60Hz, AC110V (optional)
|
|||||
|
Software
|
EZCAD
|
|||||
Main Features of mopa gold metal cabinet smart color fiber online laser marking machine.
1) Genuine EzCad software.
2) Raycus Fiber laser source offer 3 years Warranty.
3)High quality laser beam. The diameter of focal spot not over 20μm.
4)High speed marking. Special laser head for High-speed scanning.
5)Low consumption.
6)Long lifetime without maintenance. More than 100000 working life.
7)Small size suit for harsh working environment.
8)Fast processing speed. High precision.

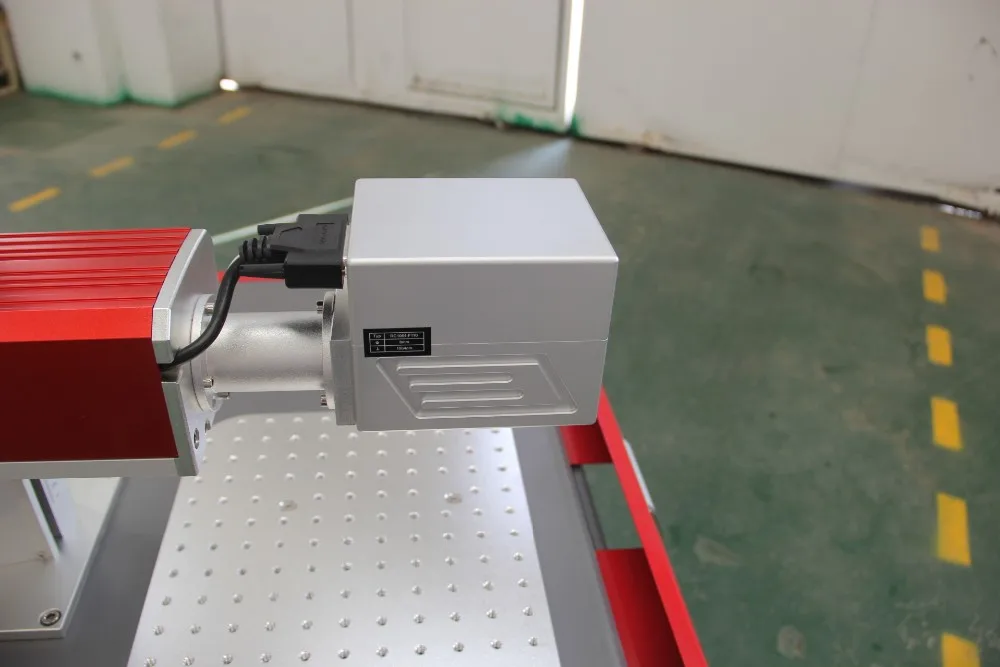

High speed digital scanning galvanometer system
Lens from Singapore,1064nm f=254mm, highest light transmission make sure no power reduction

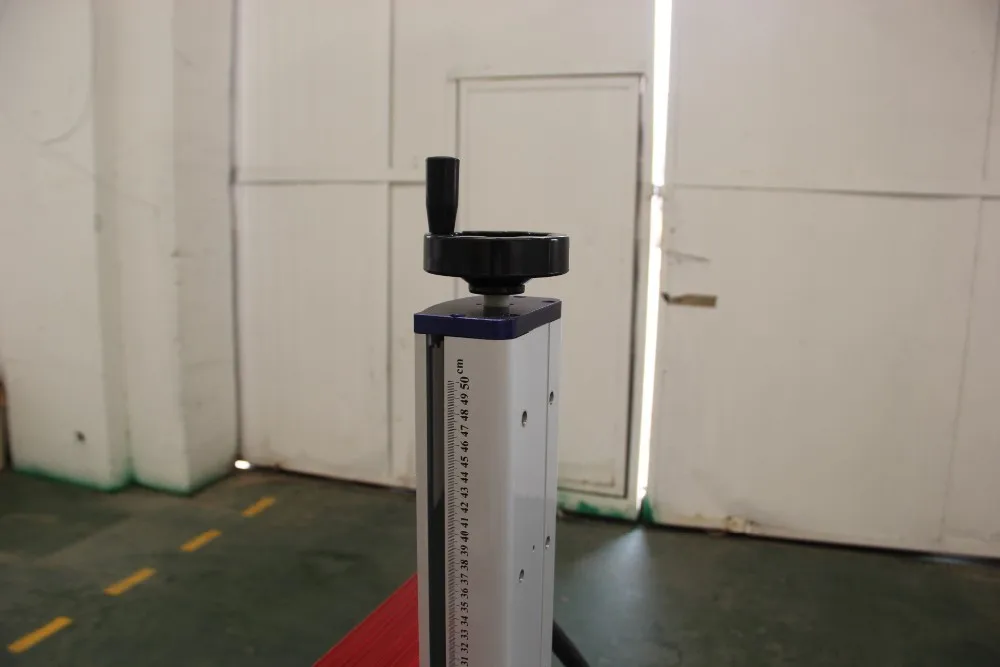

Up-down controller and clear Ruler,easy to adjust the up-down system to find correct focus distance
Switch and Key
Fans
Cool down machine to protect it and make sure long time working
Working table Made up by precision alloy and imported precise beeline device.X axis adjustable range 160 mm,Y axis adjustable range 500 mm,Flexibility mesa have multiple screw holes,convenient and custom installation ,special fixture industry platform.

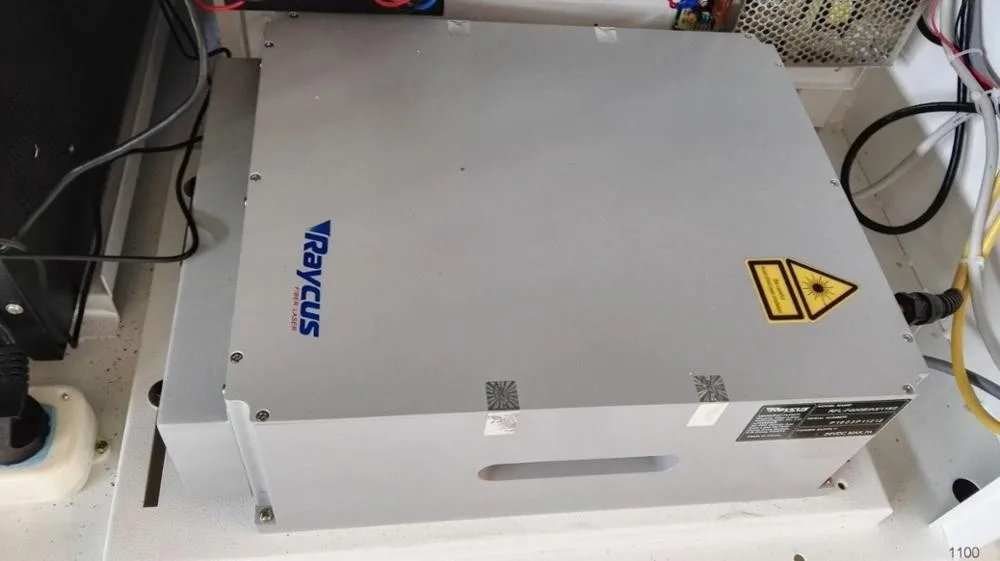

The best quality Wuhan Raycus fiber laser generator , Raycus brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.

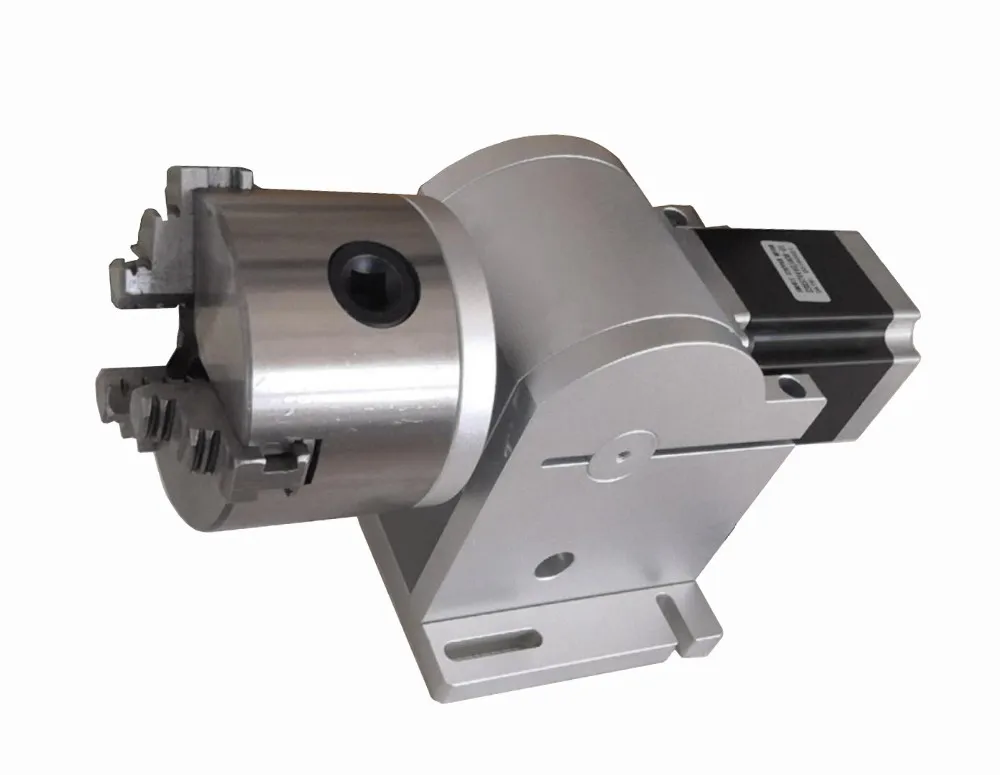

Can be used for different cylindrical, spherical objects to rotate the marker axis. The stepping motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.
Metal laser engraving machine portable Fiber laser marking machine can make which materials?

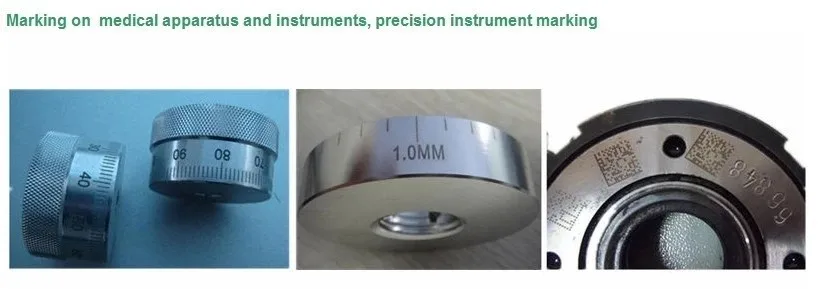

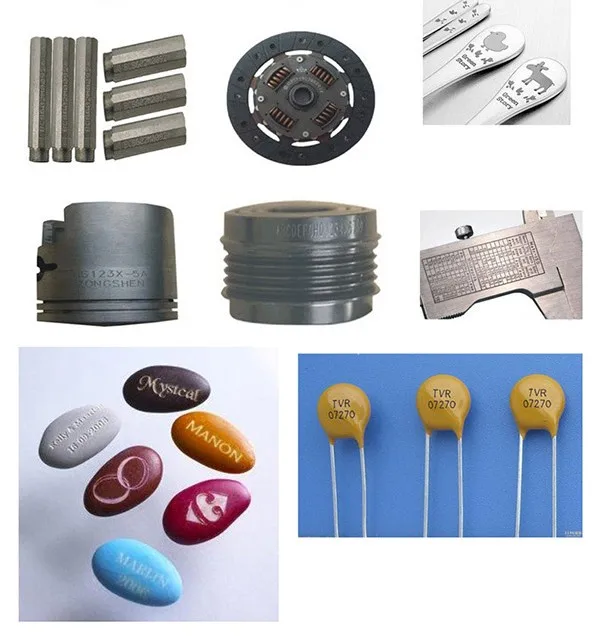

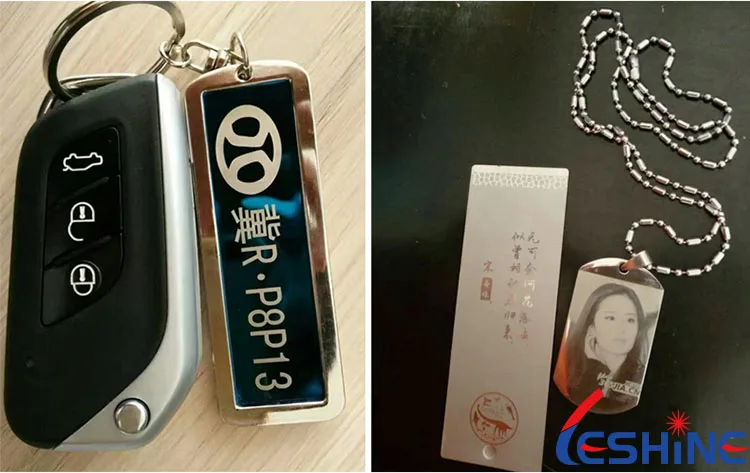

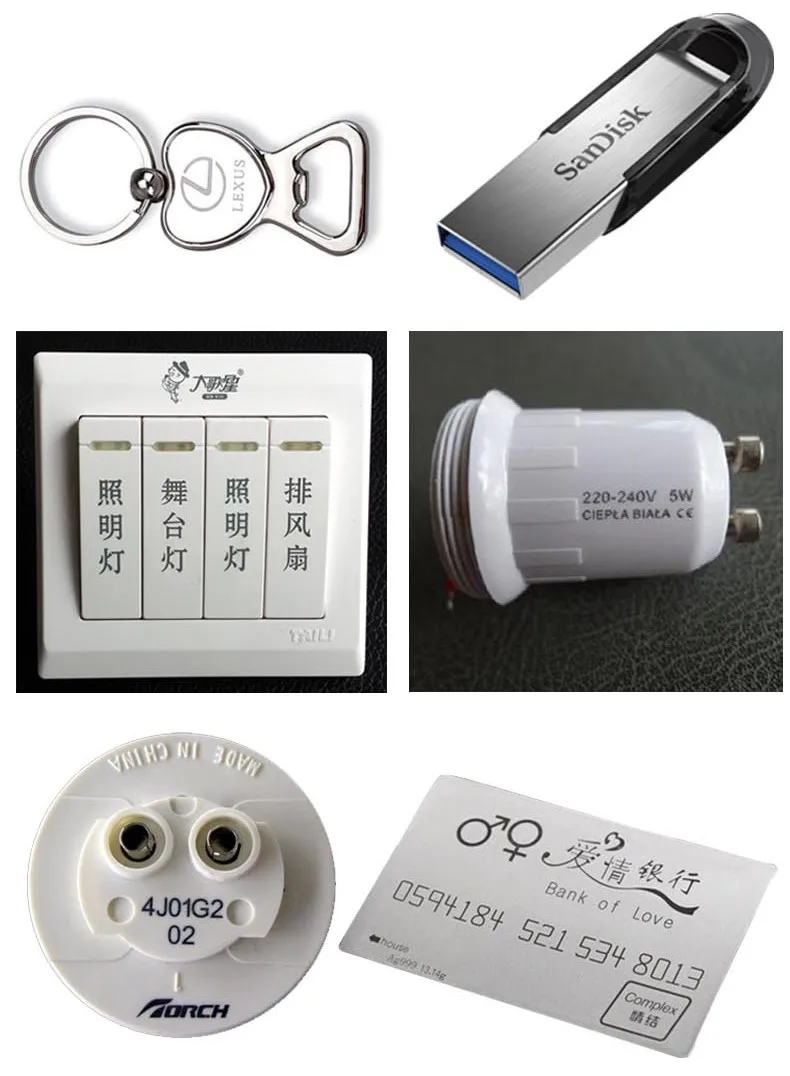

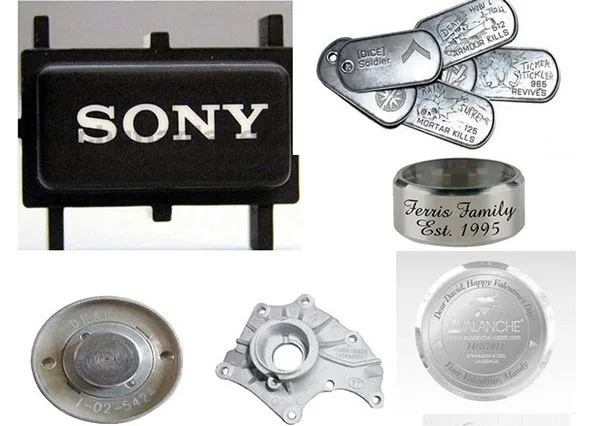

Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc
