Product Usage and Features

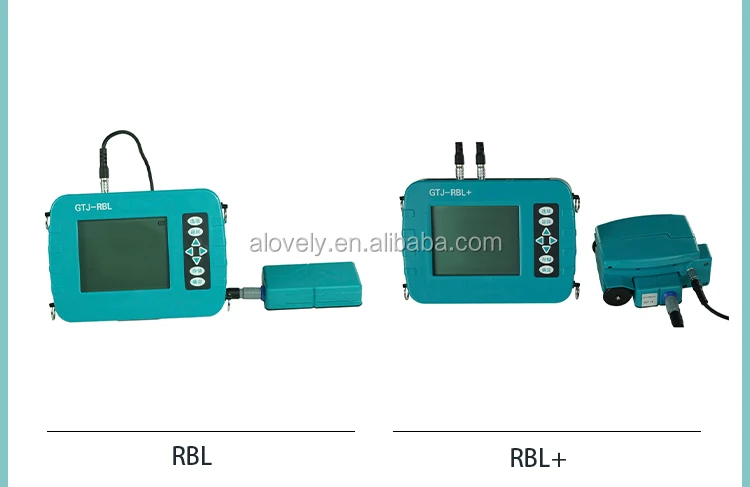

GTJ-RBL Concrete Cover Meters Rebar Detector
USAGE OVERVIEW:
The Concrete Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars from the concrete surface, detect the thickness of the concrete and the diameter of the steel bars; ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.
PRODUCT FEATURE:
|
Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
|
|
Built-in large capacity memory card, storage capacity upgrade.
|
|
USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.
|
|
Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth.
|
|
Manual calibration.
|
|

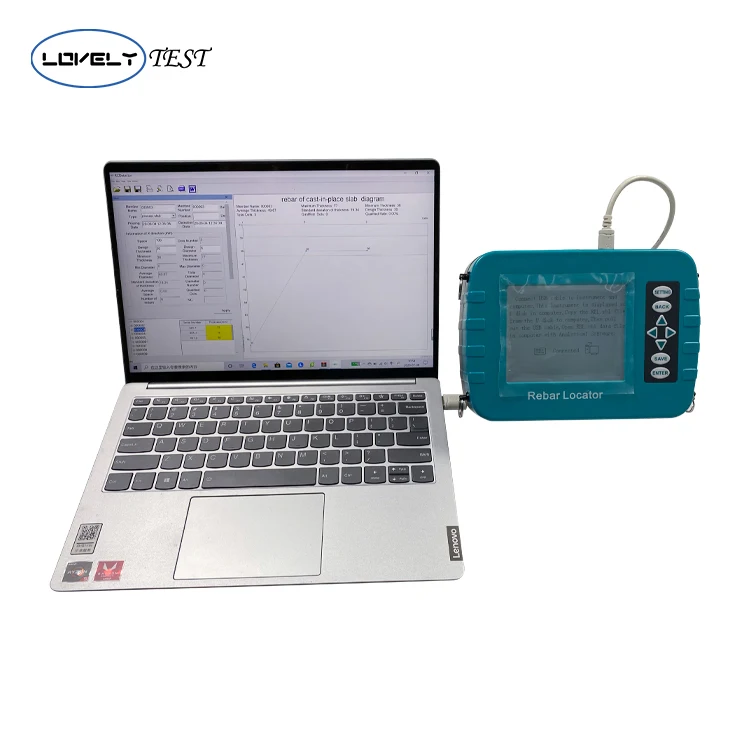

Professional data analysis software, make your data post-processing and report generation work more easily completed.
|
Technical Parameters
|
Model
|
GTJ-RBL
|
GTJ-RBL+
|
|
Applicable range of protective layer thickness
|
1mm~200mm
|
1mm~200mm
|
|
First range
|
6mm~90mm
|
6mm~90mm
|
|
Second range
|
6mm~200mm
|
6mm~200mm
|
|
Max. allowable errors of the Protective Layer Thickness
|
1-80mm (±1mm)
|
1-80mm (±1mm)
|
|
81~119mm (±2mm)
|
81~119mm (±2mm)
|
|
|
121~200mm (±4mm)
|
121~200mm (±4mm)
|
|
|
Scope of dia. Estimation
|
φ6mm~φ32mm
|
φ6mm~φ32mm
|
|
Section grid
|
Not support
|
Graphics+Digital display
|
|
Max. errors of Diameter indication
|
±1 specification
|
±1 specification
|
|
Storage capacity
|
2000 Components *1000 Measuring points
|
2000 Components *1000 Measuring points
|
|
Data transmission mode
|
USB; Wireless cloud transmission (potional)
|
USB; Wireless cloud transmission (potional)
|
|
Power suppy
|
Lithium battery over 12 hours
|
Lithium battery over 12 hours
|
|
Host parameters
|
Waterproof parameters:IP65
Screen size:5 inches
Resolving:320*240 Volume:195*140*45mm Weight:0.8kg |
Waterproof parameters:IP65
Screen size:5 inches
Resolving:320*240 Volume:195*140*45mm
Weight:0.8kg
|
|
Working environment
|
Temperature: -10℃ ~ +40℃
Humidity： 90%RH
|
Temperature: -10℃ ~ +40℃
Humidity： 90%RH
|

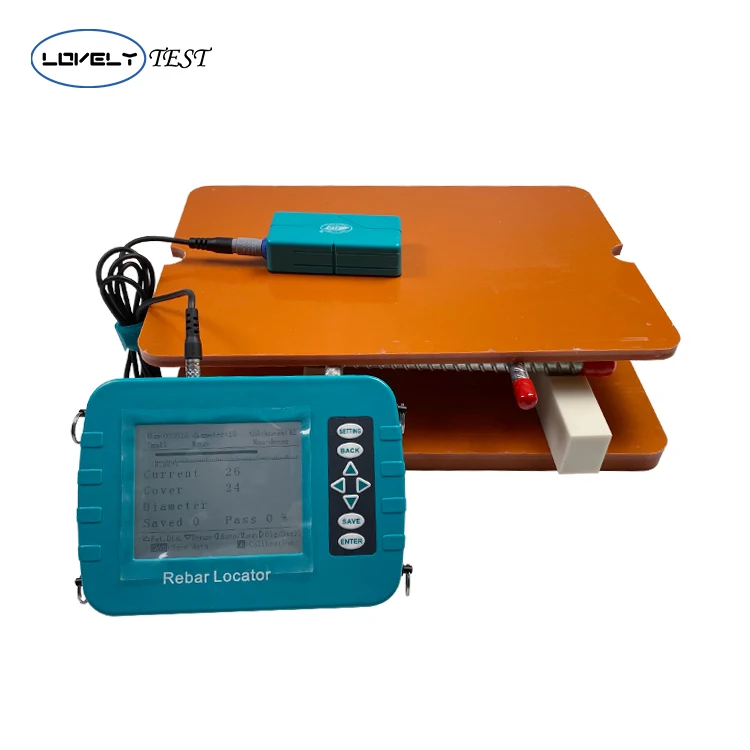

Detailed Images
