Promotion Price Integrated Radiation Smart 5 Elements Ultrasonic Weather Station Sensor For Intelligent Street Lamp Sensor

R 26,807.07
Shipping calculated at checkout.

Promotion Price Integrated Radiation Smart 5 Elements Ultrasonic Weather Station Sensor

For Intelligent Street Lamp Sensor
Product Presentation

FT-WQX series ultrasonic weather station is designed by the standard of WMO(World of Meteorological Orgnization). The instrument is widely used in meteorological monitoring, navigation, environmental protection, animal breeding, pier, bridge, tunnel etc. It can monitor wind speed, wind direction, ambient temperature, relative humidity, barometric pressure, rainfall, PM2.5,PM10, CO, NO2, SO2, O3. We have 8models, each model is with different parameters, so you can choose anyone suitable for you.

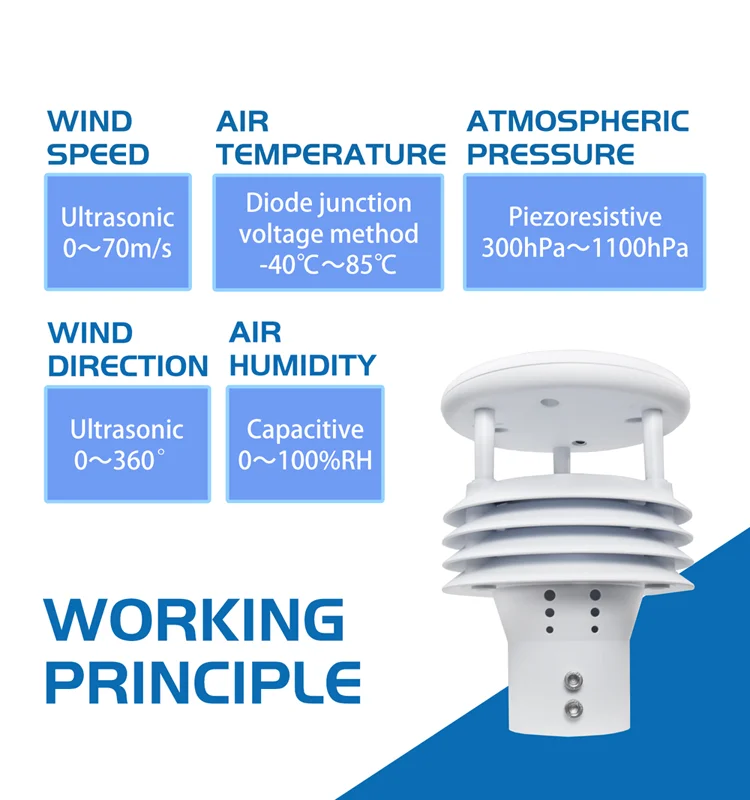

The weather station is developed based on the principle of ultrasound. Our FT-WQX series ultrasonic weather station is designed with new technology---phase demodulation and phase discrimination. Compared with the time-difference method(old technology), our device is more accurate and durable when using.
Item
Specifications
Product Name
Ultrasonic Weather Station Sensor FT-WQX5
Wind Speed
0～60m/s
Wind Direction
0～360°
Temperature
-40℃～60℃
Humidity
0～100%RH
Pressure
300hPa～1100hPa
Supply
DC12-24V/Solar Power(Option)
Communication
Modbus-RTU
Output
RS485
Power
0.72W
IP Grade
IP65
Detailed Images

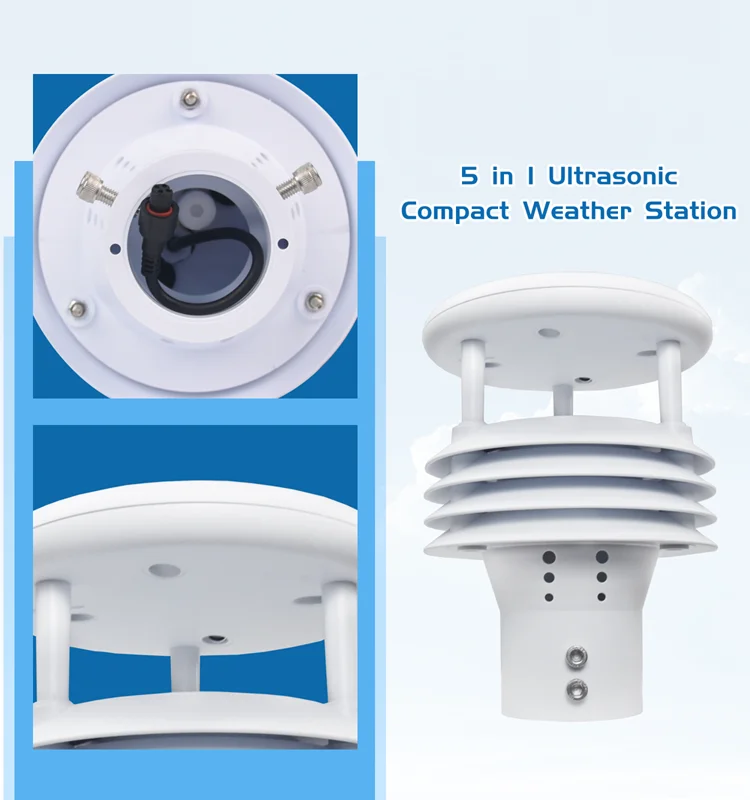

Hidden Ultrasonic Probe
The wind monitor sensors are hidden at the top of instrument, compared with the one at down side and outside, it is more clean,
specially in snow or raining circumstances. We use the continuous frequency conversion principle to measure the data. By the phase
discrimination and phase demodulation principle to confirm the wind specifications. We got two patents for this sensor.
Other Sensors
The sensors for ambient temperature, relative humidity, barometric pressure, mean while, also can integrated other sensors together as your requires, such as noise, PM2.5, PM10, CO, NO2, SO2, O3 etc. Just tell us what you need.
Communication Term
Modbus RTU.
The standard type is RS485. RS232 is optional. Also accept other ways for communication as client's requirement.
Flange(optional)
When install the sensor at upright tube, will need this flange to connect.
This part is Optional!
Product Description

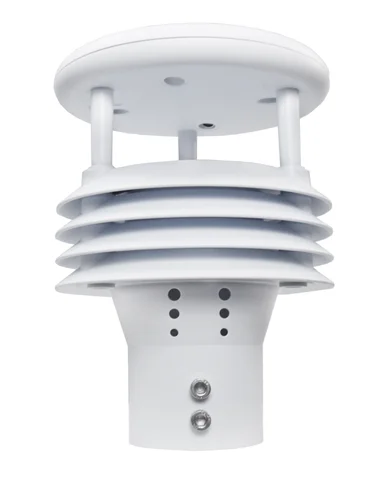

FT-WQX5 ultrasonic weather station is with 5 parameters, we adopt highly integrated system, it can simultaneously measure five meteorological parameters: Wind Speed, Wind Direction, Ambient Temperature, Relative Humidity, Barometric Pressure. It can make 24 hours continuous monitoring.
Compared with traditional weather station, we avoid the data delay from sensor start and demodulator circuit, and the data inaccuracy from temperature variation. Our new technology solves all the problems and makes the instruments more stable and accurate.

More Models

We have 8 models ultrasonic weather sensors, but if you need to do customer made, we also accept. Just tell us what parameters do you need to integrate. Then we can make for you.
Certificate
CE, RoHS, EMC, LVD are authorized by the European Union. The testing standard is NB2853.
